3D Furler is designed to be operated at any angle on any stay which makes it perfect for behind the mast installation Simply add a stay about 3 – 4 inches behind the boom to give the drum clearance and install your 3D Furler.
Rig your control lines any way you wish on the boom. The main sail will be loose footed.
All foils have an oversized Luff Gap for main and mizzen sails.
Measuring your mast’s dimension to determine the radius for a side mounted platform

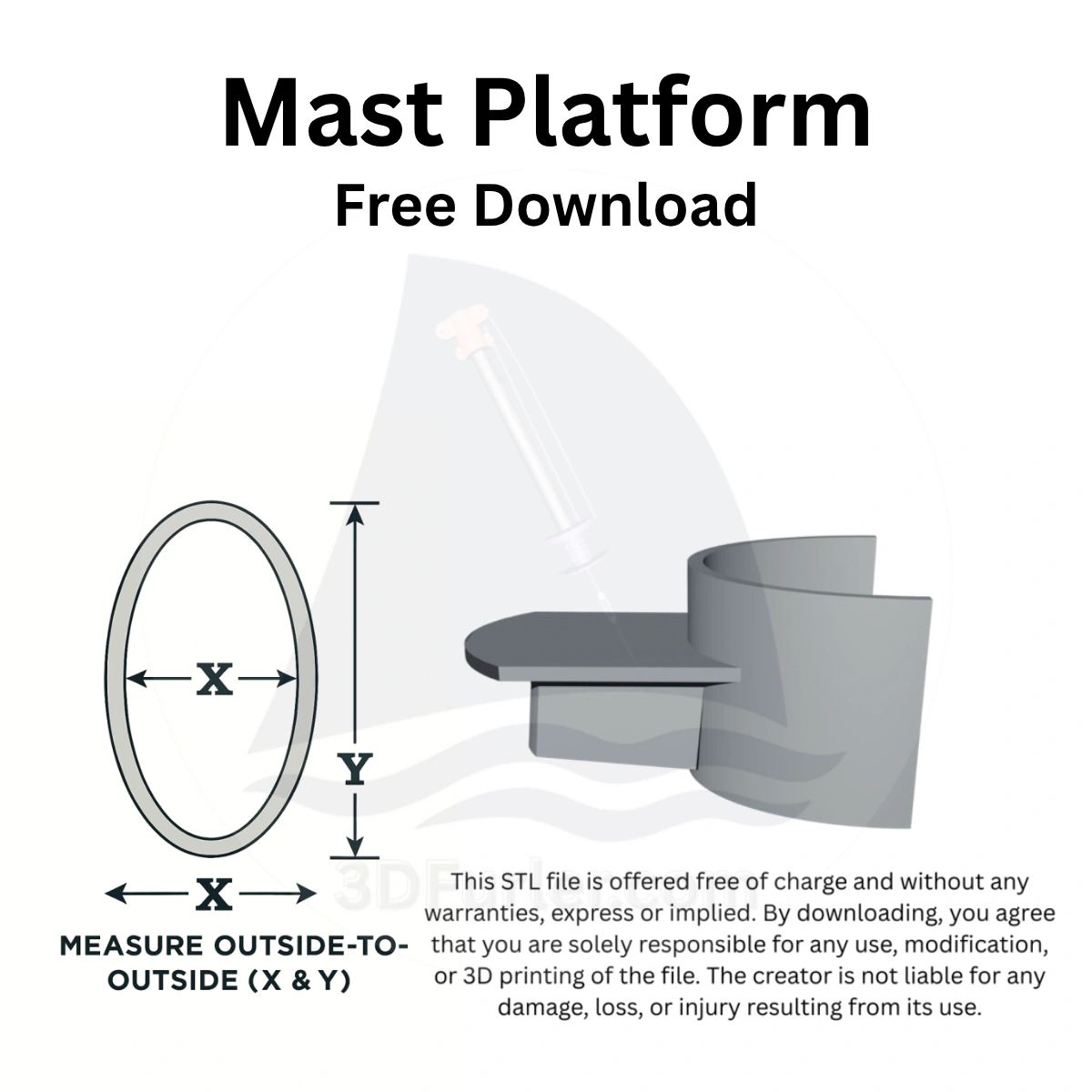

Below is a free link to a stay platform file that can be scaled to your mast size or change it to suit your needs. Use it on both Top and Lower
Using the X and Y measurements will determine the correct Radius
Scale the free drawing in compatible freeware such as Blender or Free Cad
You can then hire a local fabricator to make an aluminum one or 3D Print in ASA
Contact us for a 3D Printing Quote
3DFurler’s drum is designed for
Behind the Mast applications

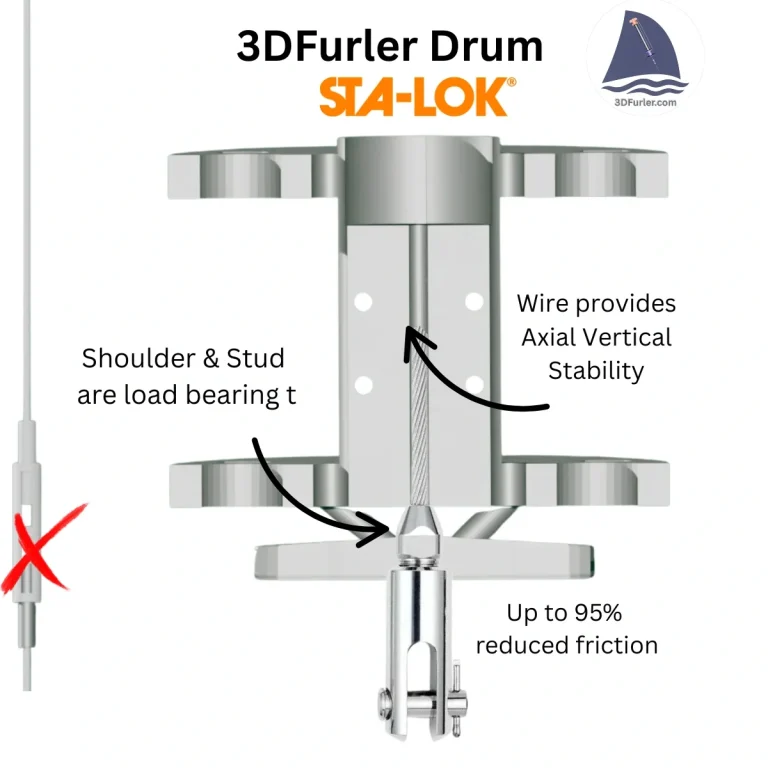

All lines are and tensioners are mounted “under ” the drum, which will be much easier to complete than above , since the drum will be sitting above the boom
Using a turnbuckle to tension the stay may be impractical as it can add too much height

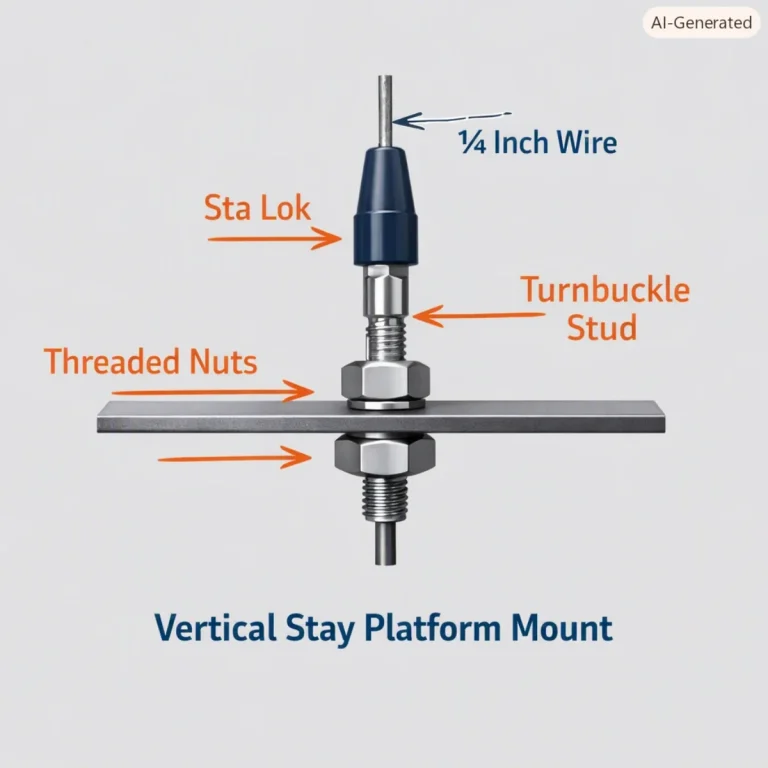

Just use a Sta- Lok type compression
fitting into a turnbuckle stud followed by two keeper nuts as shown below
Use the lower keeper nut to tension the stay
Doing it DIY?
Questions about your rig?
Technical calls go straight to someone who has fitted these. Have your stay length and wire size ready and we can size it on the phone. 904-600-4105 or help@3dfurler.com.
