Sizing the Furler

Two measurements. Stay length and stay diameter. Not your Dad’s Roller Furler

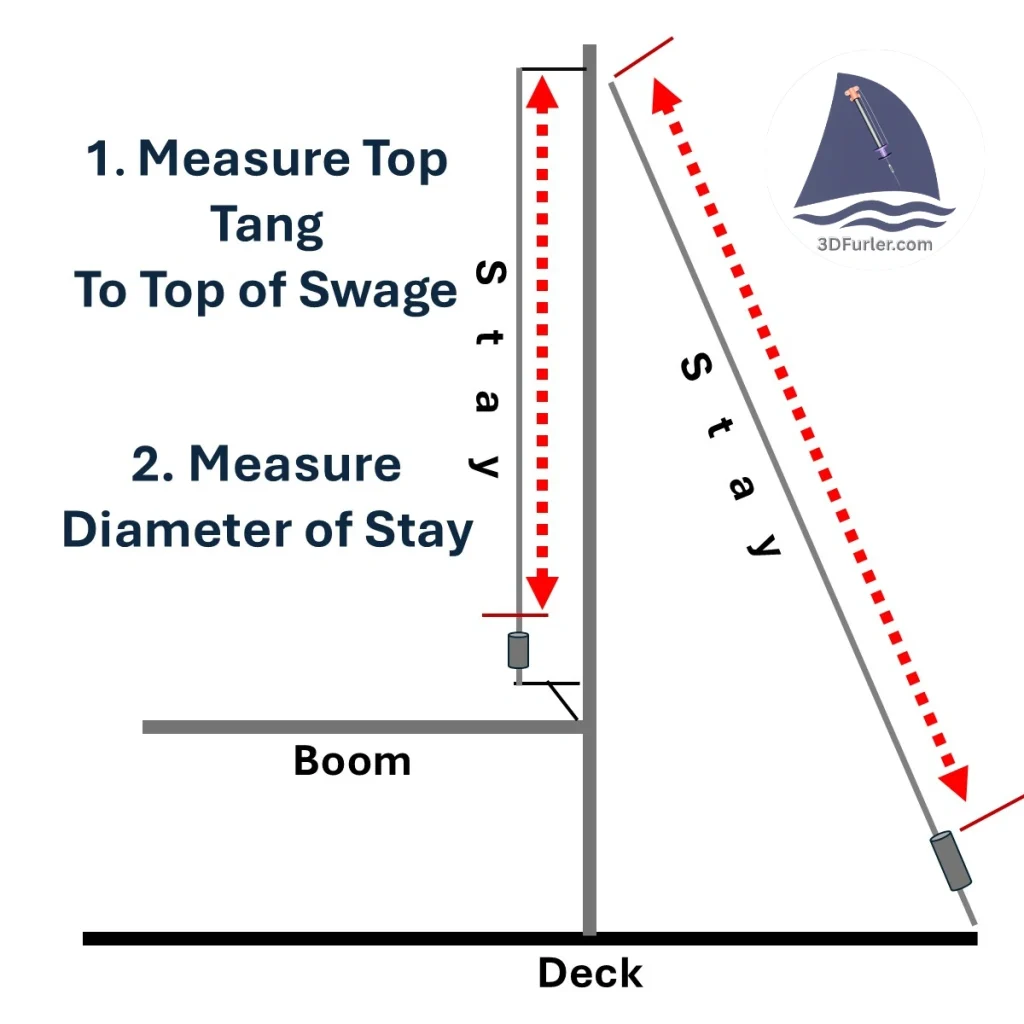

Behind the Mast and Main Measuring Diagram

Measure from the mast point of stay to the swage top of stay

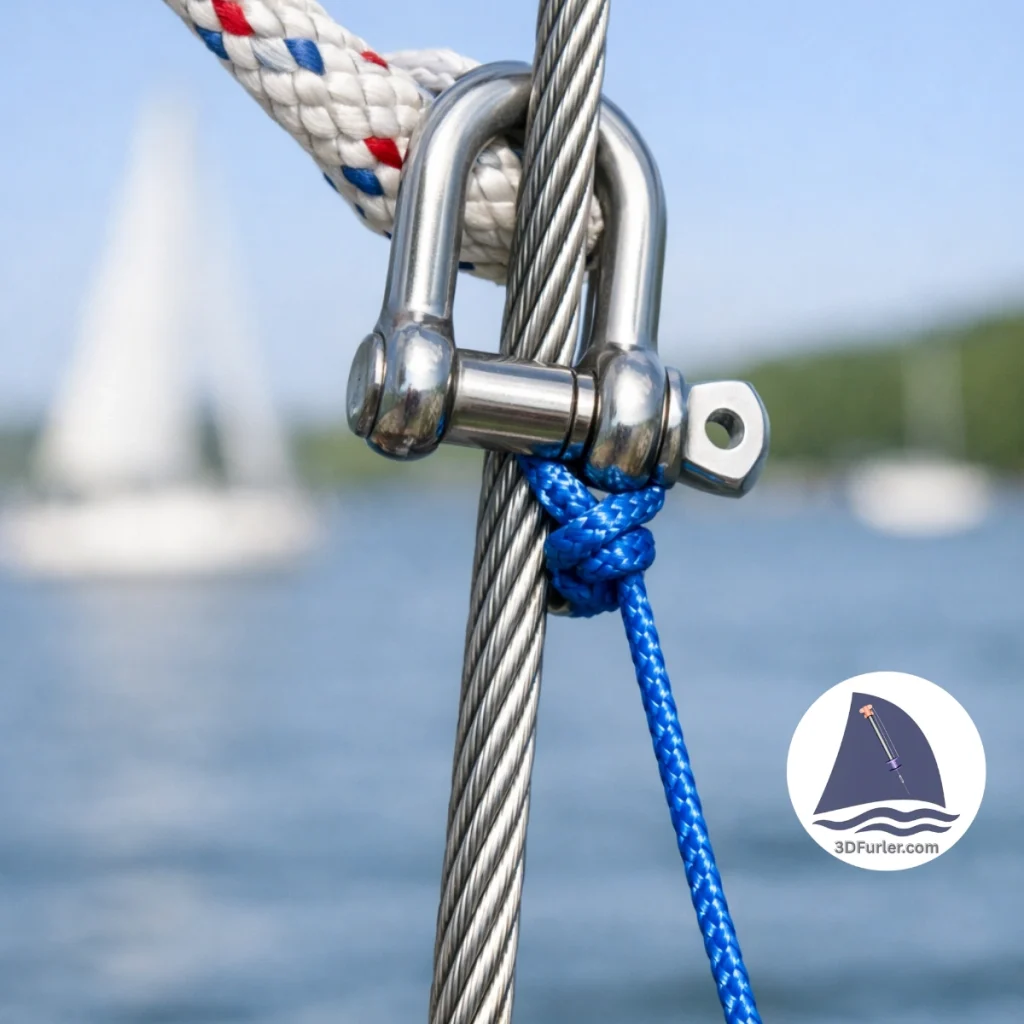

Using a shackle with jib halyard and messenger to measure a stay.

Use a spare halyard and a safety messenger line to measure your stay length accurately.

The final step in sizing is to measure the stay diameter using a set of calipers.

stay size

Roller Furler Configurator

Enter your stay measurement and wire size. We size the furler and price it for you.

Fits stays 16′ 6″ – 56′ 11″ (furlers 15′ – 55′)

ft
in

Measure from the mast point of the stay to the swage top of the stay.

30′ 0″ furlerAF301
Sail luff length (estimate)

3DFurler recommends measuring for the sail after the installation.

Stay diameter
Top assembly color
Drum color
$0List price
Final price in cart

3DFurler

drag to rotate · scroll to zoom
Show
View

In the box

    Rather have us do it?

    Free technical support. Have your stay length and wire size ready and we will size it with you on the phone.
